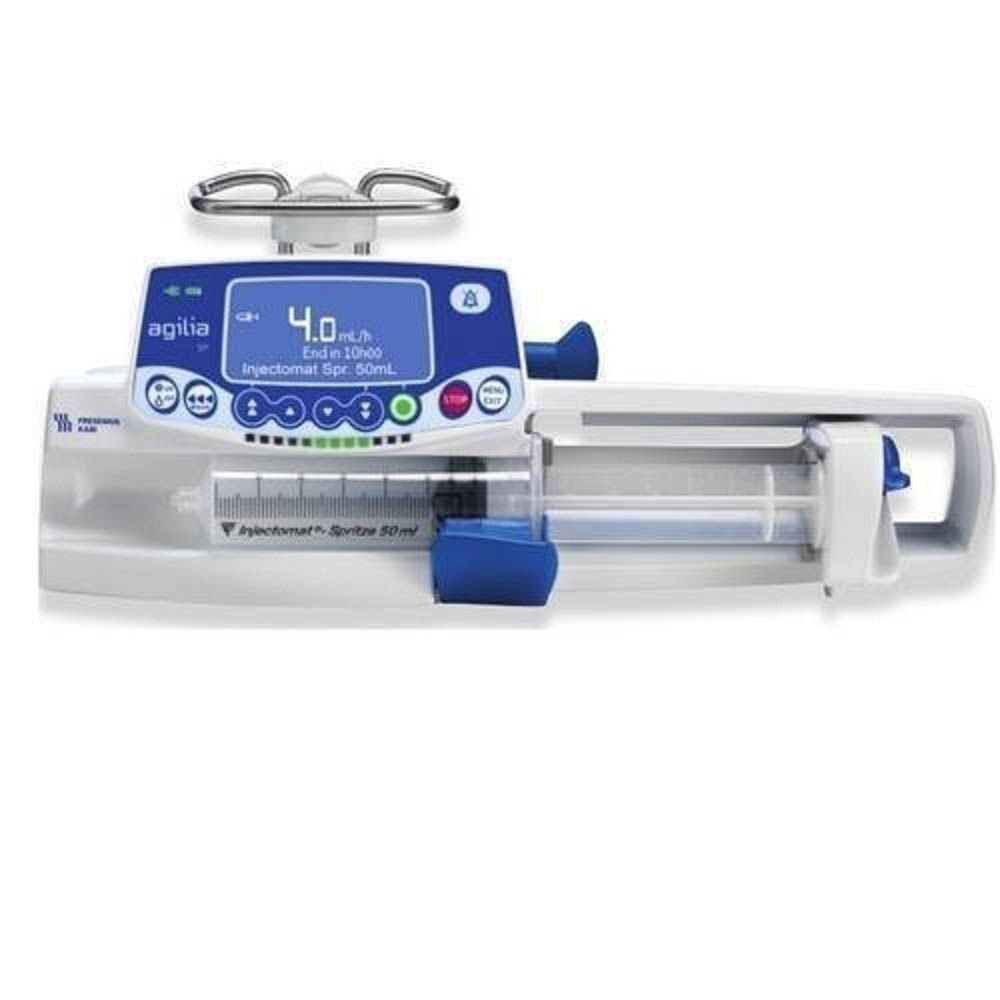

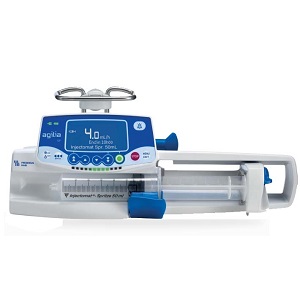

Syringe Pump
Brand Name
Fresenius Kabi
Country Of Origin
France
Certification
CE Certified
Phone
Syringe size: Work on the following syringe capacities 5, 10, 20, 30/35, 50/60 CC and compatible with min 100 types of syringes.
Flow Rate: Flow rate range 0.1ml/hr to 1200 ml/h with accuracy of ± 1% on mechanism.
The Dynamic Pressure System - DPS - warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
Anti-bolus system: Reduces significantly bolus after occlusion release. 0.35 mL max for a 50 mL syringe.
Bolus Rate: 50-1200 mL/h (50 mL/h) increment .
Volume /Dose Infused: 0.01 to 999.9 mL
Flow Rate Range: 0.1-1200 mL/h, depending on the syringe capacity
Flow Rate Accuracy: Including Syringe within ± 2%, mechanical accuracy ± 1%.
Alarms: Occlusion, Nearly Empty, Pressure, Clutch Displacement, Syringe Barrel Detection, Flange Displacement, Plunger Displacement, Battery, Start Reminder.
Battery: Have Li-ion Smart battery, remaining battery life and battery charge level available on the display. Battery Life (when fully charged): > 13 h at 5 mL/h
The Size is 66 mm × 33mm and have Blue graphic LCD monochrome display
Display Feature: Graphical display of the following history "Volume / dose infused, pressure, flow rate" is present. Variable and 3 pre-set levels pressure mode is available.
The device has push guard for syringe protection.
The Dynamic Pressure System with maximum and minimum threshold setting is mandatory.
Have Swing lock clamp for versatile clamp and horizontal clamp that allows the fixation on a rail or on a pole.
The night mode programmed manually or automatically in a variable time range is to decrease the brightness of the screen.
Fast start option is mandatory with pause option programmable from 1min to 24hrs.
