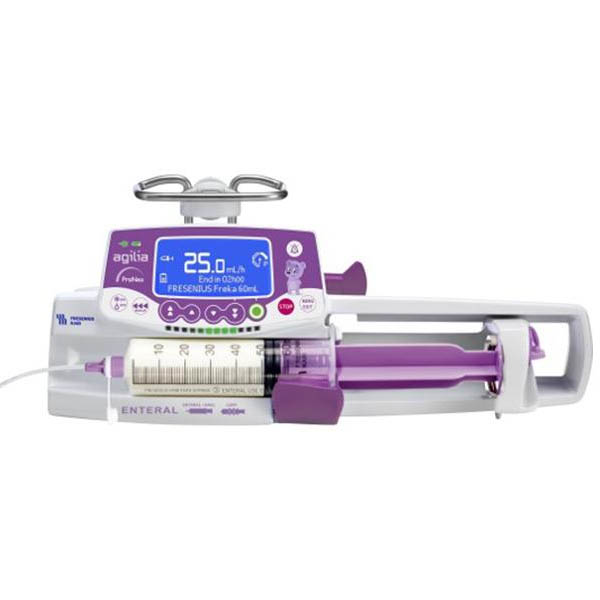

Enteral Nutrition Syringe Pump
Brand Name
Fresenius Kabi
Country Of Origin
France
Certification
CE Certified
Phone
Display: Blue graphic LCD monochrome, size 70 x 35 mm (256 x 128 pixels).
Swinglock clamp: versatile clamp that allows the fixation on a rail or on a pole (Pole: diameter 15 to 40 mm max. / Rail: 25 to 35 x 10 mm).
Stackability: Up to 3 devices self-stackable on a pole.
Battery: Characteristics: 7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display. Battery Life (when fully charged): > 11 h at 5 mL/h
Power supply: 100 V - 240 V ~ / 50 / 60 Hz with functional earth
Syringes installation control: Syringe barrel clasp check, plunger head detection, anti-siphon system check, flange detection.
Pump status: Green light for nutrition in progress, orange light for low and medium priority alarms, red for high priority alarms.
Anti-bolus system: Reduces significantly bolus after occlusion release. ≤0.35 mL max for a 60 mL syringe.
A risk of obstruction or a possible leak in the nutrition line can thus be anticipated.
Pressure modes 2 pressure controlling modes available: variable or 3 pre-set levels - Range from 50 to 900 mmHg. (25 mmHg increment from 50 to 250 mmHg / 50 mmHg increment from 250 to 900 mmHg). Can be enabled / disabled and adjusted.
Nutrition flow rate range 0.1 - 200 mL/h, depending on the syringe capacity
Flow rate accuracy +/- 1% on mechanism; +/- 2 % with syringes
Syringe capacities: 5, 10, 20, 30/35, 50/60 mL
Types of syringes: Up to 20 types
Priming Rate: depending on the syringe capacity (250-1200 mL/h).
Volume delivered: 0.1 - 999 mL
Bolus: Bolus rate depending on the syringe capacity (50-500 mL/h)
End administration (V/T & VL): KTO (Keep Tube Open): adjustable from 0.1 to 5 mL/h, continuous nutrition or stop
Data log event: 1500 data log events in real time.
Delayed start: Programmable from 1 minute to 24 hours, increments minute by minute
