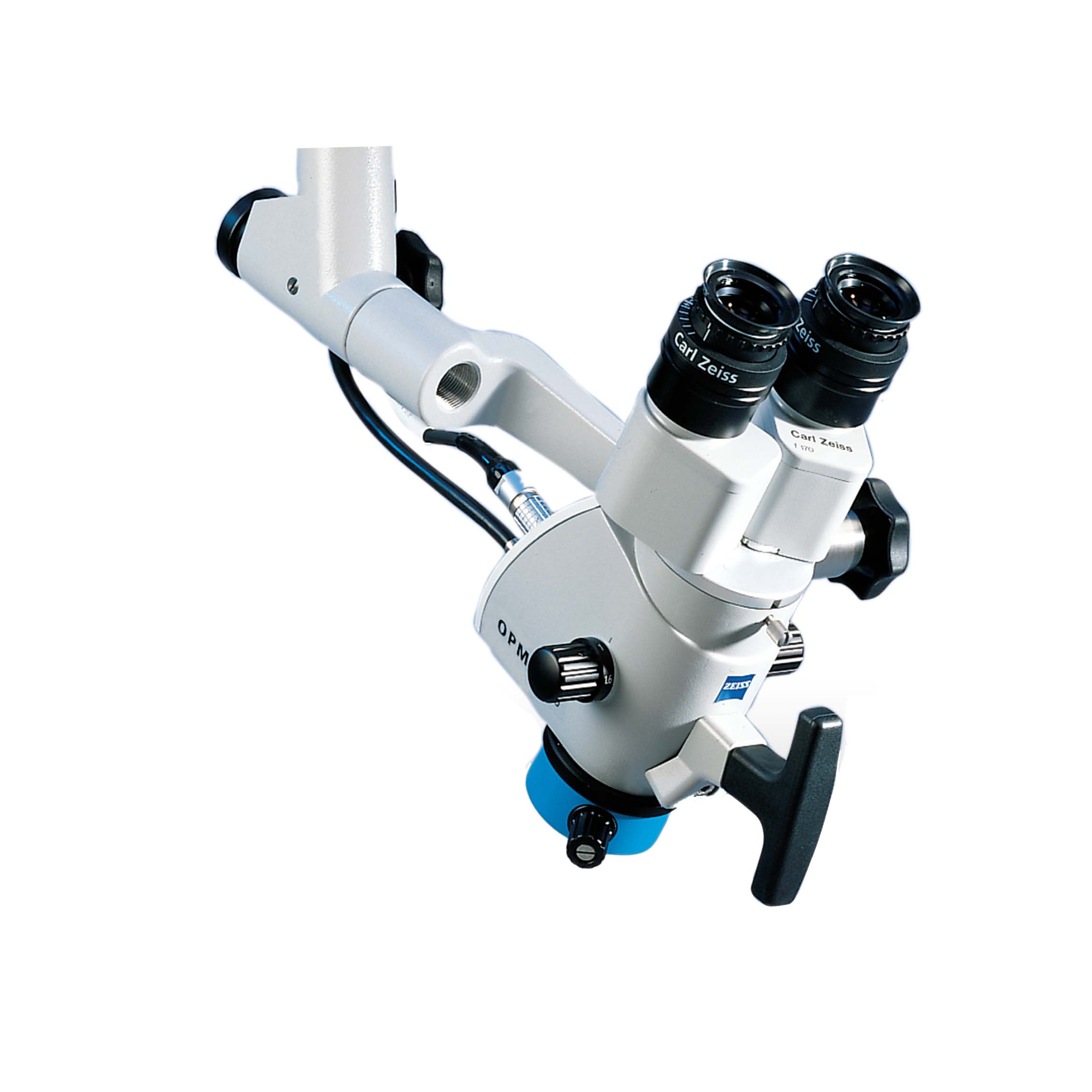

Microscope
Brand Name
Otopront
Country Of Origin
Germany
Certification
CE Certified
Phone
Illumination: Coaxial, cold light 12 V 100 W illumination with fast-action lamp changer
Working distance: Straight widefield tube with widefield, high-eyepoint 10x eyepieces Alternative: widefield, high-eyepoint 12.5x eyepieces Alternative: widefield, tiltable 180° tube
Magnification: 5-step, apochromatic magnification changer (γ-factors 0.4/0.6/1/1.6/2.5) Example: Focal length/eyepieces f = 250 mm / 10x Magnifications 2.7 x 4.1 x 6.8 x 10.9 x 17 x Field-of-view diameter/mm 76 50 30 19 12
Video camera: 1 CCD, 1/4" Y/C (S-Video), VBS (composite) 752 (H) x 582 (V) pixels (PAL), 768 (H) x 494 (V) pixels (NTSC)
Endoscope Camera: Optical port for endoscope cameras Attachment of all standard endoscope cameras with high-speed shutters
Magnification: 5-step, apochromatic magnification changer (γ-factors 0.4/0.6/1/1.6/2.5) Image diagonal of the video image _ 90% of the field of view with 12.5x eyepiece corresponds to _ 75% of the field of view with 10x eyepiece
Small, compact, convenient – and optimally equipped to perform the tasks expected of a diagnostic microscope in ENT
- Precise positioning and easy handling
- T-handgrip for reliable, exact setting of the position required for examination of the patient
- Razor-sharp images with high contrast and an outstanding impression of stereopsis
Superb visual comfort otherwise only provided by surgical microscopes
Impressive panorama viewing through wide field optics
Screw-in eyecups for excellent visual comfort
Relaxed vision with or without eyeglasses
Setting of your own personal PD
See everything down to the last detail: 5 magnification steps with the apochromatic magnification changer
